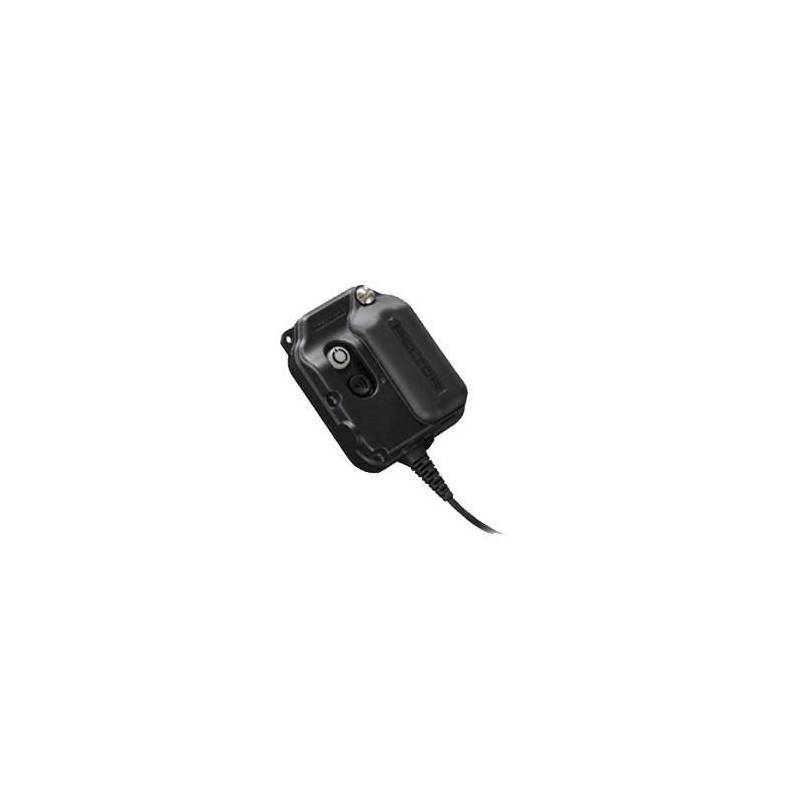

WS BLUETOOTH FLEX ADAPTER TO MOTOROLA GP320/340, HT750
Industrial adapter has a built-in Bluetooth® function that allows for complete wireless connection between Motorola GP320/340, HT750.. and a Peltor WS headset
Peltor™ WS™ Industrial Adapter FL6060-WS5, WS5 Motorola GM350 mobile station Adapter (XH001680327)
3M™ Peltor™ WS™ industrial adapter has a built-in Bluetooth® function that allows for complete wireless connection between a 2-way radio and a Peltor WS headset. When used with the Peltor WS Headset XP or the WS ProTac XP, the functions advanced VOX and DSP are available, which gives good sound quality and clear communication.
- Oil resistant cable
- Digital noise reduction and echo cancellation on incoming audio
- Electronic voice guided menu via the headset
- 10-pole connector
The Peltor™ WS™ industrial adapter can be used with a wide range of Peltor WS headsets to connect to a 2-way radio. For all non-explosive environments.
Testing and Approval
FL6060-WS5 is in conformity with the provisions set out in the R&TTE directive 1999/5/EC and the RoHS directive 2011/65/EU. Thereby it fulfils the requirements for CE marking.
The product has been tested and approved in accordance with EN 60950-1:2006 +A1:2010 + A11:2009 + A12:2012, EN300 328 V1.7.1, EN 301 489-1 V1.8.1, EN 301 489-17 V2.1.1
The product has also passed testing according to: FCC 15.247 (Title 47 CFR chapter I part 15 subpart C) FCC 15b (Title 47 CFR chapter I part 15 subpart B), RSS-210 and ICES-103
The product has been examined by Phoenix Testlab GmbH, Königswinkel 10, D-32825 Blomberg, Germany, Notified body #0700
Technical Data Specifications
- Size: PTT house: 90x70x40 mm
Cable: Self extinguishing PUR sheeting
- Power: The adapter is powered by 2xAA 1.2–1.5V batteries and can use any type, NiMH, NiCd, Alkaline, Lithium, Manganese, etc.
- Battery lifetime: Typical battery life time with 2*AA Alkaline batteries is 29 h
- Use and storage:
Storage temperature: -20°C to +55°C, humidity <90%
Usage temperature: -20°C to +55°C
- Maximum recommended shelf life:5 years except batteries:
- Use limitation: Never modify or alter this product
