TORA CLEAR AR AE

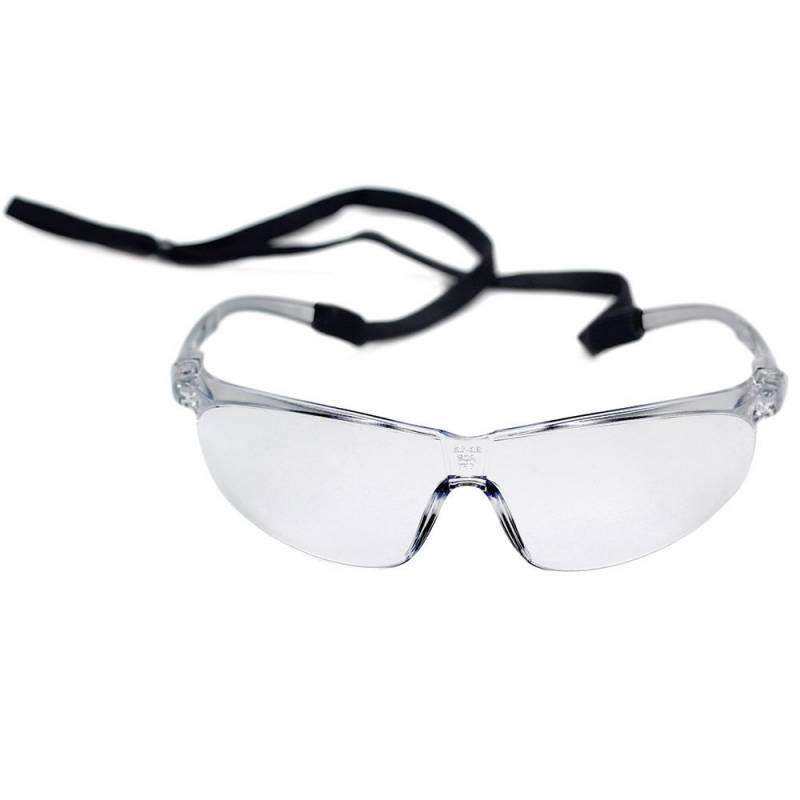

3M™ Tora™ Series Safety Spectacles

The 3M™ Tora™ Series safety spectacle is comprised of a rimless wrap-around lens and fixed-length temple arm. An integrated brow-guard is included for added protection. The temple tips include holes that allow attachment of a lanyard.

Product Range

71501-00001M: 3M™ Tora™ PC Clear AS/AF
71501-00002M: 3M™ Tora™ PC Bronze AS/AF
71501-00003M: 3M™ Tora™ PC Amber AS/AF

Intended Use

These products are intended for protection against high speed particles at low energy (F) at extreme temperature conditions, -5°C and +55°C, (T) in accordance with EN166:2001. They also protect against UV radiation in accordance with EN170:2002, and sun glare in accordance with EN172:1994 (bronze lens).
A number of lens options are available for a variety of different applications:

• Clear: Good colour recognition and excellent UV protection
• Amber: Enhanced contrast in low light conditions
• Bronze: Protection from sunglare

Standards and Approval

This protective eyewear has been shown to meet the basic safety requirements under Article 10 of the European Community Directive 89/686/EEC and is thus CE marked.
These products have been examined at the design stage by INSPEC International Ltd., 56 Leslie Hough Way, Salford, Greater Manchester, M6 6AJ, United Kingdom (Notified Body number 0194).
These products are tested and CE approved against EN166:2001

Key Features

• Optical class 1 lens suitable for prolonged use.
• Design provides excellent coverage and good field of vision
• Offers excellent protection against Ultraviolet (UV) radiation
• Lens coatings provide both scratch resistance and reduced fogging
• Integrated brow bar for added protection
• Lightweight design (24g)

Applications

These products can be used in a wide range of applications including:

• Construction
• Engineering
• General assembly
• Light duty maintenance and repair
• Inspection work
• Woodworking

Marking

The products have demonstrated compliance with the requirements of EN 166:2001 and associated standards and bear the following marks:
Lens: 2C-1.2 3M 1 FT
Frame: 3M Tora EN 166 FT CE

Explanation of Marking

2C-1.2 (EN 170:2002): UV protection, this product conforms to the requirements of the standard, providing UV protection for the complete specified range (210nm – 365nm). Products marked C provide good colour recognition.
1: Optical class
F: Impact protection against high speed particle at low energy (45m/s)
T: Tested for impact protection at extreme temperature conditions -5°C and +55°C

Materials Listing

Lens: Polycarbonate
Temple Arm: Polycarbonate
