Airband

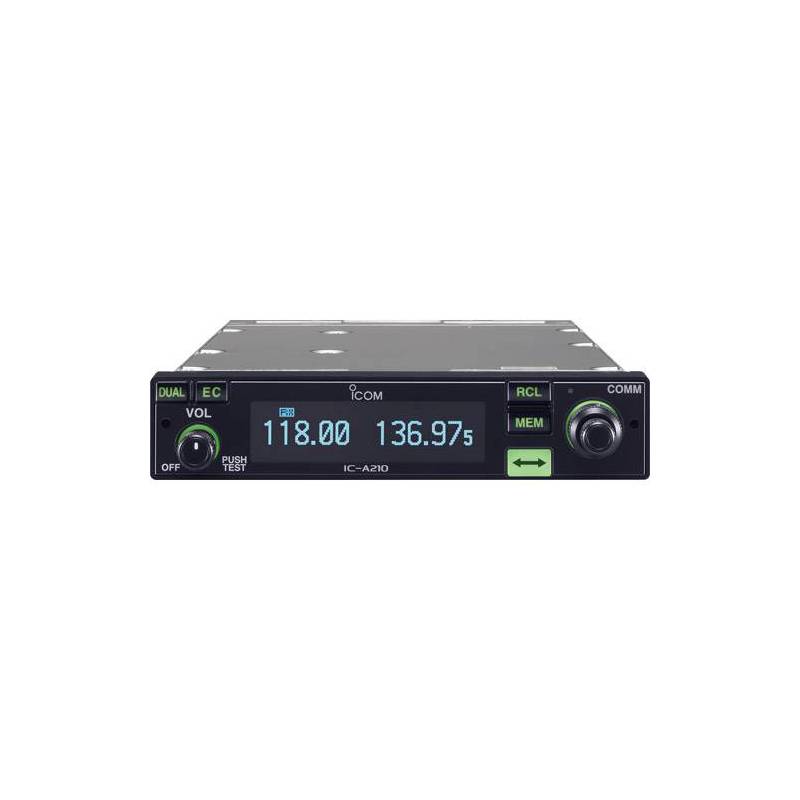

ICOM IC-A210

IC-A210E#03
€1,050.00
Tax excluded
€1,050.00
Tax excluded
A fixed mount VHF airband first! The IC-A210 has an organic light emitting diode (OLED) display. The OLED display emits light by itself and the display offers many advantages in brightness, vividness, high contrast.

Out-of-Stock

Innovative airband that's easier to install and see in more places

Large, bright OLED display
A fixed mount VHF airband first! The IC-A210 has an organic light emitting diode (OLED) display. The OLED display emits light by itself and the display offers many advantages in brightness, vividness, high contrast, wide viewing angle and response time compared to a conventional display. In addition, the auto dimmer function adjusts the display for optimum brightness at day or night.

Easy channel selection
It?s fast and easy to select any of memory channels in the IC-A210. The ?flip-flop? arrow button switches between main and stand-by channels. The dualwatch function allows you to monitor two channels simultaneously. In addition, the auto stack memory stores the last 10 channels used and allows you to recall those channels easily.

GPS memory function
When connected to an external GPS receiver* equipped with an airport frequency database, the frequency data such as nearby airports can be transferred and made available in the IC-A210.
* Ask your dealer for available GPS receiver details.

12V/24V DC power source
The built-in DC-DC converter accepts a 12/24V (11.5?27.5V) DC power source. The IC-A210 is easily installed in most airplanes or vehicles.

Intercom functions
The IC-A210 has a built-in voice activated intercom function allowing the pilot to talk with the copilot via the headset. The IC-A210 has adjustable audio level and squelch control functions.

Easy installation
The IC-A210 neatly fits inside the common mounting brackets used on most airplanes including Icom?s IC-A200. Two types of rear-panel adapters are included, allowing for streamlined plug-in connectivity.

Other features

  • 10 regular memory channels with a 6-character channel name
  • 200 group memory channels (20 Ch × 10 banks) with a channel tag
  • NOAA weather channel receive (USA version only)
  • One touch access to 121.5MHz emergency frequency
  • Side tone function for monitoring your voice with headset
  • ANL (Automatic noise limiter) function reduces pulse type noise
  • Remote control capability
  • Time-out-timer
  • VFO scan
  • PC programming capability
  • Dial lock and panel lock
  • Squelch test function

SPECIFICATIONS

General

Frequency Coverage
  Tx/Rx 118.000-136.975 MHz
  Rx Wx Channels 161.650-163.275 MHz*
  *USA only
Frequency spacing 25KHz
Frequency stability ±5ppm
Operating temperature -20ºC to +55ºC
Antenna impedeance 50?
No. of memory channels 10 regular mem,200 groups mem,10GPS
  10Weather(USA),10 auto stack mem
Power suply requirement 11.5-27.5V DC (negative ground)
Current drain (at 13.8 V DC)
  Trasmit 5A max.
  Receive 4A - AF max.
  0.5A ? Stand-by
Dimensions (W×H×D) 160(W) x 34(H) x 271(D) mm;
Weight 1.0 Kg

Transmitter

Output power 8 W typ. (carrier power)
Spurious emissions Less than -60dB
Microphone impedance 600k

Receiver

Intermediate frequency
  1st 38.85 MHz
  2nd 450 kHz
Sensitivity (typ) Less than 2.0µV for 6 dB S/N (with 1 kHz, 30% mod.)
Selectivity ±3kHz for 6dB S/N
  ±22kHz for 60dB S/N
Spurious rejection Less than 74dB
Audio output power 5W with a 4? load
  60mW with a 500? load

All specifications are subject to change without notice or obligation.

Supplied Accessories

  • Mounting bracket kit
  • Rear panel adapter

ICOM IC-A210 Manual (791Kb)
