Anemometers

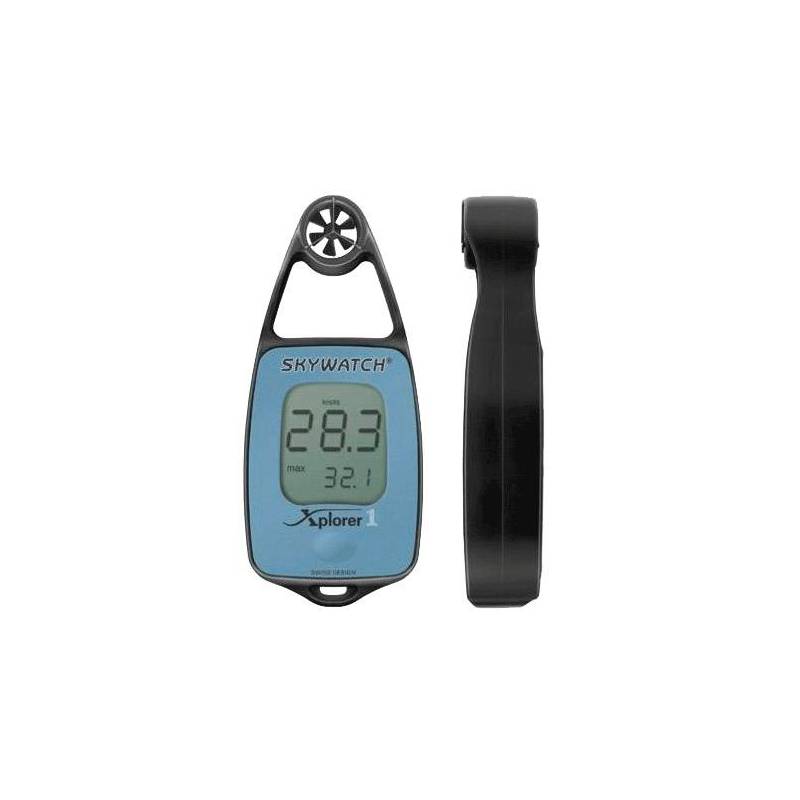

Skywatch Xplorer

INSANX-P*
€33.06
Tax excluded
€33.06
Tax excluded
Anemometer range that measures speed (all) and direction (Xplorer 3&4) of the wind, Ambient Temperature (Xplorer 2,3&4), Barometric Air Pressure (Xplorer 4), Altitude (Xplorer 4).

Model:
Product available for orders
Skywatch
Skywatch
Skywatch
Skywatch
X1logo
X2logo
X2logo
X2logo
X1thumb
X1thumb
X1thumb
X1thumb
Skywatch Xplorer 1 Skywatch Xplorer 2 Skywatch Xplorer 3 Skywatch Xplorer 4
  • Windspeed
  • Maximum windspeed
  • Windspeed
  • Maximum windspeed
  • Temperature
  • Windchill factor
  • Windspeed
  • Maximum windspeed
  • Temperature
  • Windchill factor
  • Digital compass
  • Windspeed
  • Maximum windspeed
  • Temperature
  • Windchill factor
  • Digital compass
  • Altitude
  • Barometric air pressure
  • 48-hr history of pressure
  • 48-hr history of altitude

COMMON FEATURES:

  • Dimension: 3.5 x 1.5 x 0.75 in, 2 oz. (41 x 93 x 17 mm, 50 g)
  • One button operation
  • EL Backlight
  • Completely sealed; internal sensors
  • Weatherproof (can be submerged 6 feet)
  • Replaceable Lithium battery (included and installed)
  • Stainless steel back
  • Auto-off after one minute (can be disabled to remain on)
  • Included lanyard
  • One year warranty
  • Designed in Switzerland

Skywatch Xplorer Series Measure:

  • Wind Speed
    - current, maximum
  • Wind Direction
    - electronic compass (Xplorers 3 & 4)
  • Ambient Temperature
    - current, windchill, maximum, minimum, water (Xplorers 2, 3, 4)
  • Barometric Air Pressure
    - absolute, relative, maximum, minimum
    (Xplorer 4)
  • Altitude
    - maximum, minimum
    (Xplorer 4)
Windmill
paraglide

The Xplorers are loaded with many unique features:

  • Electronic Compass
    - analogical and digital (Xplorer 3, 4)
  • Bright EL Backlight
    - to view data in dim light
  • Replaceable Impeller
    - factory replaceable
  • Sealed and weatherproof
    - perfect for use around water

The SKYWATCH Xplorers also provide important data:

  • Windchill (Xplorers 2, 3, 4)
  • Relative and Absolute Pressure (QFE/QNH)
    (Xplorer 4)
  • Weather Tendencies (Xplorer 4)
  • 48 hour History of barometric pressure
    (Xplorer 4)
sail

Specifications:

Features: Windspeed Temperature Compass Altitude Pressure
Models: All Xplorers Xplorers 2, 3, 4 Xplorers 3 and 4 Xplorer 4 Xplorer 4
Units: km/h, mph, m/s, fps, knots °F, °C Degrees (°) off North feet, meters inHg, hPa
Range: 0.7 to over 94 mph
1.1 to over 150 km/h
-58°F to 212 °F
-50°C to 100°C
0° to 359° off North -2,300 to 29,500 ft
(above 9,999 ft. only meters is displayed)
-700 to 9,000 m
8.86 to 32.50 inHg
300 to 1100 hPa
Resolution: 0.1 unit 0.2°F, -0.1°C 3 ft, 1 m 0.01 inHg, 1 hPa
Accuracy: +/- 3% from 2.0 to 94 mph
(3.1 to 150 km/h)
+/- 0.5°F
+/- 0.3°C
+/- 4° when calibrated +/- 10 ft
+/- 3 m
+/- 0.03 inHg
+/- 1 hPa
Measuring Cycle: Twice per second Twice per second Twice per second Once per second Once per second

Details:

WINDSPEED:

  • [All Xplorers]
  • Balanced impeller is integrated into wind meter
  • The impeller is magnetized, producing a magnetic field when rotating which is measured internally
  • Damage to the impeller is unlikely due to the small opening, but repair can be performed

TEMPERATURE:

  • [Xplorers 2, 3, 4]
  • Internal thermometer is attached to the stainless steel back
  • Temperature adjusts quickly, although drastic temperature changes may require several minutes for accuracy
  • Temperature is read quickly by touching the back to an object of the same temperature
  • Water temperature is read quickly by submerging the unit briefly

DIGITAL COMPASS:

  • [Xplorer 3 and 4]
  • Designed to be used in vertical position
  • Will display windspeed and compass simultaneously
  • Electronic calibration before use ensures absolute precision (easy process)
  • Calibration is essential for proper use
  • Accurate wind direction can be found in this way - we introduced this feature in 2004

ALTITUDE:

  • [Xplorer 4]
  • Altitude is based on an initial set altitude and a change in air pressure (this is true of ALL altimeters)
  • Drastic air pressure variance (weather front) will impact altitude readings (usually occurs over 12+ hours)
  • Several seconds is needed to adjust to new altitude
  • The highest accuracy is achieved when the altitude is properly set, a change in altitude is more than 10 feet, and several seconds are allowed for adjustment
  • For example, the Xplorer 4 may be moved from one level of a house to another, and a change of 10 feet will be recorded (standard ceiling height)
  • Altitude and air pressure are measured on the same sensor, and adjusting one will adjust the other
  • Altitude history is recorded every hour for the past 48 hours
  • Altitude in feet can only be displayed up to 9,999 ft., after which the unit will revert to meters. This is due to the number of digits available for altitude readings (four digits)
  • See instruction manual for more details

AIR PRESSURE:

  • [Xplorer 4]
  • Air pressure is read in either "relative" or "absolute" air pressure
  • Absolute air pressure is a precisely defined measurement, just like temperature
  • Absolute air pressure is measured within .10 inHg, and cannot be adjusted
  • Relative air pressure is the most common unit used in the US
  • Relative air pressure factors out the change in elevation, essentially calculating the air pressure at sea level
  • Relative air pressure is adjusted to reflect current altitude
  • Once the relative air pressure is set, if no changes to altitude occur the accuracy is within 0.01 inHg
  • The most important factor in changing weather is the change in air pressure
  • Rising air pressure indicates better weather, falling air pressure indicates worsening weather
  • With the air pressure history, one can accurately predict future weather
  • Air pressure history is recorded every hour for the past 48 hours, although the past 6-12 hours is most important
  • See instruction manual for more detail
