Flymaster LIVE SD

Variometers

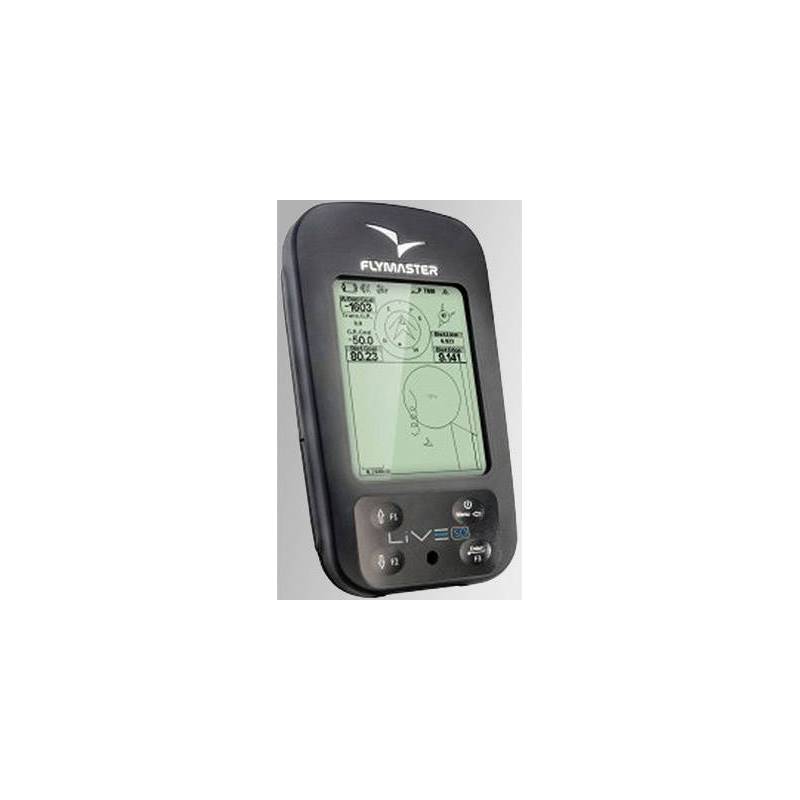

Flymaster LIVE SD

flymaster_LIVE_SD
€602.48
Tax excluded
€602.48
Tax excluded
Flymaster Avionics presents the innovative Flymaster LIVE SD, which includes the new FLYMASTER LIVE-TRACKING NAVIGATION SYSTEM, enabling real-time flight monitoring - live-tracking - over GoogleEarth, contributing significantly to improve flight safety.

Extras:
Product available for orders

Flymaster Avionics presents the innovative Flymaster LIVE SD, which includes the new FLYMASTER LIVE-TRACKING NAVIGATION SYSTEM(Patent Pending) recently proven at the 2011 X-Alps.
Compared with the previous series, the new series has a new look, more robust (new shock absorbing system which makes the display almost unbreakable), includes 6-degrees of freedom Tilt-compensated Compass and SD Card which provides extended memory.

Taking advantage of this new powerful tools the new series will include a set of new features:

  • World airspaces maps
  • Altitude over ground
  • More accurate calculation of arrival heights
  • Geographical data

The system enables real-time flight monitoring - live-tracking ? over GoogleEarth, therefore enhancing the sharing of free flight emotions and contributing significantly to improve flight safety.
In addition to the configurable fields on the instrument itself, the LIVE SD allows the user to customize and define the layout of his instrument?s screen.
Flymaster LIVE SD has restricted airspace features, promoting significant increased safety.
The new structural design of the LIVE SD casing provides high strength and anti-glare protection of the screen against scratches and breaking.
Like the B1-NAV, the Flymaster LIVE SD makes navigation simple on cross-country and competition flights, ensuring the best value for money on the market, adding a significant increase in safety

SPECIFICATIONS

Main Hardware Characteristics LIVE SD
Display Resolution (High Contrast Grey Scale) 320x240 Pixel
Battery Capacity (Lithium-Ion) (mA.h) 4000
Autonomy >30 h
Size 155x92x22 mm
(L x W x T)
Weight 231 g
New look, more robust (new shock absorbing system which makes the display almost unbreakable)

SD card slot for extended memory, located at the side of the casing and changeable by the pilot.

World airspaces maps on SD card.

REAL altitude over ground (AGL) via topogrphical data on the SD card!

More accurate calculation of arrival heights.

Geographical data (topography)

6-degrees of freedom tilt-compensated compass

GPS 50 channels/
4hz
RF Interface (with FCC or ETSI conformance for unlicensed use in the 315, 433, 868, and 915 MHz bands.) Allows for simultanious wireless connection of several external probes, like M1 or wind speed probe.

USB interface

Battery Charging using wall adptar, or usb standard port

Full quad-band GSM / GPRS class 10.

Firmware update by USB (upgrades are free)

Interface Features
16 diferent pages (each page can be draw using designer software, and include a number of elements only limited by space)

Number of configurable graphical elements (depending of the element several parameters can be set by the user ex. Size, Border, ?) (number will continuously grow) 10
Number of configurable data field elements (User can change size, border, title, Font, ...) (number will continuously grow) 60
Number of Page Trigger Events (page switch automaticly if an specific event occurs) 6
Function Keys (User can define the key function)

Variometer/Altimeter Features
Buzzer/near thermal sound

High Sensibility Variometer with 10 readings/s, and 10 cm resolution

Adjustable Vario Digital Filter

Fully configurable Vario Sound (frequency, increments, frequency/vertical speed relation,?.)

6 Sound Levels (configurable by menu, or using a key)

High Descent Alarm

Altimeters 3
Altitude adjustment using QNH

Memory Features
3D flight logger IGC format

Number of Waypoints 448
Trackpoints >300000
Number of flights Max 248
Recording capacity at scan rate 1 sec/20 sec 90 / 1.800 hours
Restricted Areas Functions (3D Airspace)
Compatibility with Open Air format (upload of files using Designer)

Number Polygon Points/Cylinders/Arcs 3.100 / 2.200 / 1.400
Avarage number of Resctricted Areas all worldwide!
Display of restricted areas in map

Adjustable warning vertical distance to a restriced area

Adjustable warning horizontal distance to a restriced area

Display of shortest Vertical, and Horizontal, distance to restricted area

Resctrited area alamrs (vertical iminent, horizontal iminent, violation, ?)

Cross Country Features
Exclusive Thermal Ball indicator

Several specific data fileds like Distance to take off, current and avarage glide ratio, avarage speed, etc.

Distance to thermal indexed with altitude

Goto waypoint

Multiple waypoint route

Wind Speed and Direction (GPS based calculations)

Automatic altitude gain profiler

Competition Features
Route Optimization (indication for shortest route point)

Speed to Start (optimal speed to make the start)

Arriving altitude at goal with visual indication

Several Glides Ratios (to goal, avarage, to next,?)

Easy task definition

TASK Navigation

Live Tracking Features
Automatic data sending to a remote server through GSM network, ex. for LiveTracking (compatible with several servers)

Automatic data receiving from a remote server ex. alarm messages.

Periodic sending of SMS with position to a predifined number.

Event triggered sending of SMS with position to a predifined number.

Other Features
Mac and windows compatibility

Multiple Languages
