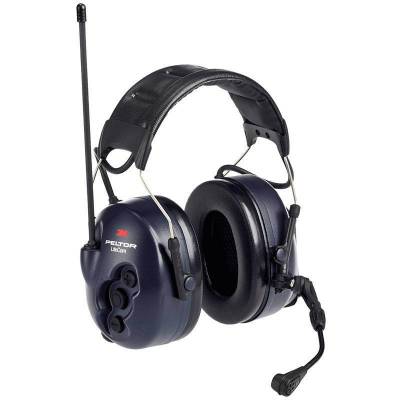

LITECOM RADIO PMR 446 BUILT-IN, HEADBAND

LITECOM RADIO PMR 446 BUILT-IN, HEADBAND

MT53H7A4400EU

Hearing protector with built-in comm radio for cable free short-range communication with other LiteCom and portable two-way radios on the same frequency

Quantity

LiteCom – For increased safety and performance

The 3M™ Peltor™ LiteCom is a high-performance hearing protector with a built-in communication radio for cable free short-range communication with other LiteCom headsets and portable two-way radios programmed on the same frequency. The noise cancelling speech microphone with VOX functionality enables you to communicate hands free in noisy environments.

Safety
The LiteCom is designed for those who want an easy-to-use hearing protector with a limited number of functions. You can control all the settings with only three buttons, which makes the LiteCom Basic very user-friendly. In addition, an electronic voice confirms the settings you have chosen, allowing you to make adjustments without removing the headset.

Convenient hearing protection
A hearing protector only provides protection when you are wearing it, so all settings and controls are designed to be intuitively simple, to avoid the need to remove the headset unnecessarily. A voice guides you through the menu. The headset switches itself off automatically if it is inactive for more than two hours, to conserve the battery. You are notified of battery status every time you switch the headset on.

Connect automatically
As soon as you talk into the microphone the chosen channel is opened in milliseconds, so other users can hear you regardless of the noise level, in the same seamless way. The microphone software is programmed only to pick up speech and effectively filters out all other sounds.

Key Features

  • Built in two-way radio communication
  • 8 channels in the PMR 446 MHz band
  • 38 subchannels
  • Voice operated transmission (VOX)
  • Auto power off function
  • Battery status indication
  • Voice guided menu system

Standards and Approval:

The product is in conformity with the provisions set out in the following directives.

Thereby it fulfils the requirements for CE marking.
• PPE directive 89/686/EEC
• R&TTE-directive 1999/5/EG
• ROHS-directive 2011/65/EU

In the box:
1 x LiteCom
2 x AA Alkaline Batteries
1 x User instruction

Acessories:
Battery pack ACK053
USB cable FR09
USB Mains Adapter

Specifications

Prod code: MT53H7A4400-EU

Technical Data Specifications

Materials
Headband wire (stainless steel)
Two-point fastener (POM)
Ear cushion (PVC foil and polyether foam)
Attenuation cushion (Polyether foam)
Headband padding (PVC, Polyether foamfoil)
Cup (ABS plastic)

Battery Type:2x AA alkaline (3,0 V) or NiMH (2,4 V)

Operating time: 20 hrs

Weight (incl. batteries): 394 g (headband), 418 g (helmet att.), 384 g (neckband)

Charging temperature: 0°C to +40°C

Operating temperature: -20°C to +55°C (battery dep.)

Storage temperature: -20°C to +55°C

Recommended shelf life: 5 years (products), 1 year (batteries)

Frequency range: 446 Mhz (PMR)

Operation mode: Half duplex

Channels: 8 (PMR)

Channel raster: 6,25 kHz

Channel separation: 12,5 kHz

Modulation: FM: 2,5 kHz

Microphone type: Noise cancelling Electret (MT53)

Receiver sensibility: Typical 122 dBm

Selective squelch: CTCSS (38 channels)

Output power: 150 mW

Range: Up to 3 km rely on conditions

Power consumption:
Standby: less than 80 mA
Receiving: less than 85 mA
Transmitting: less than 210 mA

Attachment(s):

A (Headband)
B (Neck)
P3* (Helmet)

Audio Input:

Yes

Colour(s):

Dark blue

PTT on cup:

Yes

Battery lifetime(h):

-

Lite-Com Basic Certification (48 Kb)
Lite-Com Basic Declaration of Conformity (13 Kb)

Prod code: MT53H7A4400-EU

ValueType

Weight (g)

63

125

250

500

1000

2000

4000

8000

H (dB)

M (dB)

L (dB)

SNR (dB)

Mean att

394

17.9

18.1

24.3

32.1

36.2

34.7

39.2

36

33

30

23

32

Stand dev

394

2.5

2.4

1.7

2.2

2.6

3.6

3.3

2.4

33

30

23

32

APV

394

15.4

15.6

22.6

29.9

33.6

31.1

35.9

33.6

33

30

23

32

Prod code: MT53H7P3E4400-EU

ValueType

Weight (g)

63

125

250

500

1000

2000

4000

8000

H (dB)

M (dB)

L (dB)

SNR (dB)

Mean att

418

17.5

18.4

24.5

31.9

37.1

35.2

39.2

36.0

34

30

23

33

Stand dev

418

3.2

2.8

1.9

3.1

3.0

2.6

2.9

2.8

34

30

23

33

APV

418

14.3

15.6

22.6

28.8

34.1

32.7

36.3

33.2

34

30

23

33

Prod code: MT53H7F4400-EU

ValueType

Weight (g)

63

125

250

500

1000

2000

4000

8000

H (dB)

M (dB)

L (dB)

SNR (dB)

Mean att

384

18.6

16.9

23.2

32.1

35.2

35.6

38.3

37.4

34

30

22

32

Stand dev

384

4.0

3.0

2.4

2.5

2.1

2.9

3.7

3.2

34

30

22

32

APV

384

14.5

13.9

20.8

29.5

33.1

32.6

34.6

34.3

34

30

22

32

3M-PELTOR
MT53H7A4400EU
07318640063280

Data sheet

Microphone
Electret
Attenuation (SNR)
32dB
Application
Construction
Industry
Level dependent function
No
ATEX (EEX)
No
Hi-Viz
No
Attenuation
High (more than 31dB)

Specific References
