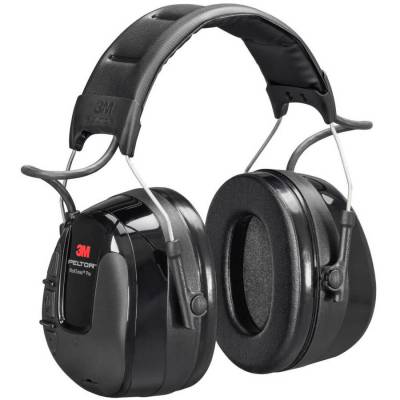

WORKTUNES PRO FM RADIO HEADBAND

WORKTUNES PRO FM RADIO HEADBAND

HRXS220A
€122.27
Tax excluded
(€122.27 tax excl.)

The 3M™ PELTOR™ WorkTunes™ Pro Headset helps protect you from potentially harmful workplace noise while at the same time enjoy listening to the built in FM radio. Headband

Quantity

-- 1 . 10 to 20 days -- Delivery Time:  10 to 20 days

3M™ PELTOR™ WorkTunes™ Pro

The 3M™ PELTOR™ WorkTunes™ Pro Headset helps protect you from potentially harmful workplace noise while at the same time enjoy listening to the built in FM or AM/FM radio. The built-in antenna, fast digital tuning and ability to store stations makes the hearing protector flexible and easy to work with.

Key Features

  • High attenuating hearing protector
  • FM or AM/FM Radio headset with built-in antenna
  • Digital station search
  • Voice guided menu system with announced frequencies
  • Store up to 5 stations
  • 3.5 mm listen only stereo input (limited to 82 dB) for connection to external devices (e.g. cell phone, two-way radio, Ipod)
  • Auto power off, the headset will turn off after 4 hrs of non-use to save battery
  • Low-battery warning at low battery level
  • To reduce the corrosion caused by sweat the electronics are located in the outer part of the cup
  • Available in both in headband and helmet attached versions (black)

Applications

3M™ PELTOR™ WorkTunes™ Pro Headset with built-in FM or AM/FM receiver can be used in noisy industrial sites as well as farming or landscaping activities.

Standards and Approvals

3M Svenska AB hereby declares that this 3M™ PELTOR™ Headset is in compliance with the essential requirements and other provisions set out in the appropriate directives. Thereby they fulfil the requirements for CE marking.
Hereby, 3M Svenska AB declares that the radio equipment type [broadcast radio receiver] is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.3M.com/peltor/doc
The product has been tested and approved in accordance with [EN 352-1:2002 / EN 352-3:2002, EN352-8:2008].
Notified Body Statement of Opinion offered by: PZT GmbH, An der Junkerei 48 F, D-26389 Wilhelmshaven, Germany. Notify body #1974

Models

Article numberDescription
HRXS220A 3M™ PELTOR™ WorkTunes™ Pro FM Radio Headset, black, headband
HRXS220P3E 3M™ PELTOR™ WorkTunes™ Pro FM Radio Headset, black, helmet attachment
HRXS221A 3M™ PELTOR™ WorkTunes™ Pro AM/FM Radio Headset, black, headband
HRXS221P3E 3M™ PELTOR™ WorkTunes™ Pro AM/FM Radio Headset, black, helmet attachment

Technical data specifications

Materials: Headband HRXS220A, HRXS221A
Headband (Stainless steel, PVC, PA)
Headband wire (stainless steel)
Two-point fastener (POM)
Cushion (PVC foil and PUR foam)
Foam liner (PUR foam)
Cup (ABS)
Latch (PA)
On/Off/Mode button (TPE)
[+] button (TPE)
[-] button (TPE)
Helmet attachment HRXS220P3E, HRXS221P3E
Cup supporting arm (stainless steel)
Battery type: 2xAA batteries (Alkaline)
Operating time: Approximately 40 hours of battery lifetime
Net weight (batteries incl.): WorkTunes Pro FM HRXS220A (headband) = 351g
WorkTunes Pro FM HRXS220P3E (helmet attachment) = 369g
WorkTunes Pro FM HRXS221A (headband) = 353g
WorkTunes Pro FM HRXS221P3E (helmet attachment) = 371g
Operating temperature: -20°C (-4°F) to +55°C (131°F)
Storage temperature: -20°C (-4°F) to +55°C (131°F)
Shelf life: 5 years excl. batteries
Wired connectivity: 3.5mm listen-only stereo input jack (limited to 82 dB)

In the box

  • 1 x 3M™ PELTOR™ WorkTunes™ Pro
  • 2 x AA batteries
  • 1 x User Instruction

Attenuation Europe

HRXS220A/HRXS221A (EN352-1:2002)

ƒ(Hz)1252505001000200040008000
Mƒ(dB) 17.0 24.0 29.5 36.9 37.3 39.3 35.4
Sƒ(dB) 3.2 2.0 2.6 3.3 4.9 3.2 3.9
APVƒ(dB) 13.8 22.0 26.9 33.6 32.4 36.1 33.5

SNR= 32dB,H= 34dB, M= 29dB, L= 22dB

HRXS220P3E/HRXS221P3E (EN352-3:2002)

ƒ(Hz)1252505001000200040008000
Mƒ(dB) 16.6 22.0 29.1 36.3 36.4 38.7 34.2
Sƒ(dB) 2.7 2.2 2.9 3.4 3.9 4.2 4.0
APVƒ(dB) 13.9 19.8 26.2 32.9 32.5 34.5 30.2

SNR= 31dB, H= 33dB, M= 28dB, L= 21dB

3M-PELTOR
HRXS220A
04054596123281

Data sheet

Attenuation (SNR)
32dB
Connection
Jack 3.5 mm
Application
Agriculture
Construction
Diary use
Gardening
Industry
Woodwork
Level dependent function
No
ATEX (EEX)
No
Hi-Viz
No
Attenuation
High (more than 31dB)
