ELECTRET THROAT MICROPHONE FOR LITECOM

ELECTRET THROAT MICROPHONE FOR LITECOM

MT90-06
€312.64
Tax excluded
(€312.64 tax excl.)

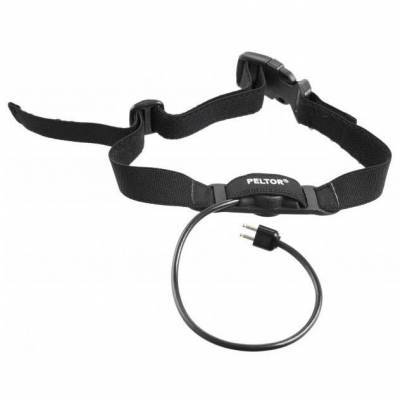

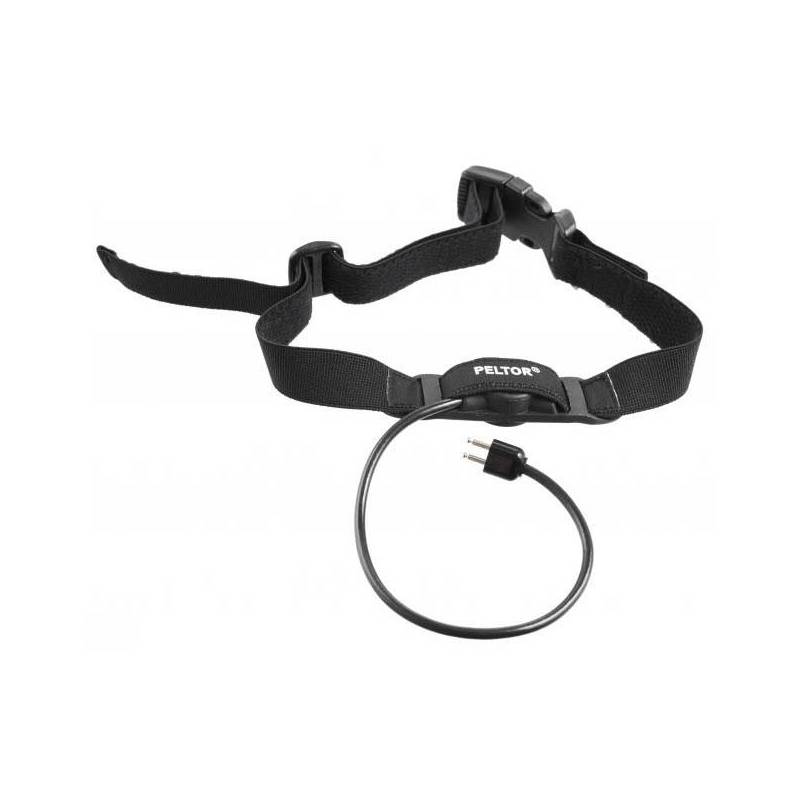

3M Peltor™ MT90-06 ELECTRET THROAT MICROPHONE

Quantity

-- 1 . 24-48 hours -- Last items in stock
(1 Item)

3M Peltor™ MT90-06 THROAT MICROPHONE ELECTRET

Product description:

  • Throat Microphone amplified
  • Easy to use
  • Water proof
  • High confort
  • Aplications: Industry, Military
  • Connector type J22

Testing

To fulfil EMC requirements the microphone has to be tested in combination with the product intended to be used with.

Electric specification

  • Nominal output (speech): 20mV RMS, 70 mV Peak-to-Peak. (Measured  at 5VDC with  a 2Kohm bias resistor,  no AC load, (signal level is essentially independent of bias voltage or resistor).
  • Output Impedance: 75 ohm Bias
  • Voltage: 2VDC to 15VDC Bias
  • Resistor: 1Kohm to 10Kohm

Mechanical Specification

  • Length:  Strap: 550 mm + flex Cable: 315 mm.
  • Weight:  Throat-mic only: 12gr (0.42 oz.)
  • Throat-mic + velcro strap + cable: 36gr (1.27 oz.) Throat-mic + buckle strap + cable: 41gr (1.44 oz.)
  • Colour:    Black

Usage and storage

Temperature range for usage: -20°C / +55°C
Recommended storage conditions: -20º C / +55º C, <85% humidity
Shelf life: 5 years

Use limitation

Never modify or alter this product
