MG 75 - MGA 75C
- On sale!
Take advantage: Free shipping to Spain and Portugal for orders over
120€
Accessories
MG 75 - MGA 75C
MG* 75*
€29.31
Tax excluded
€29.31
Tax excluded
Mobile antenna, Mono-band. Unity-gain, Omnidirectional tunable by whip cutting
FEATURES
- Mobile antenna, Mono-band
- Unity-gain, Omnidirectional

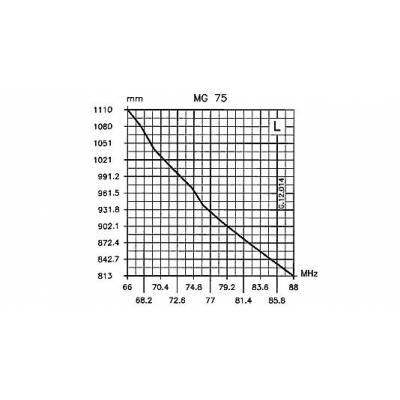

- Tunable by whip cutting
- Factory tunable according to specific customer's frequency (ask for min qty)
- Supplied with a strong stainless steel spring

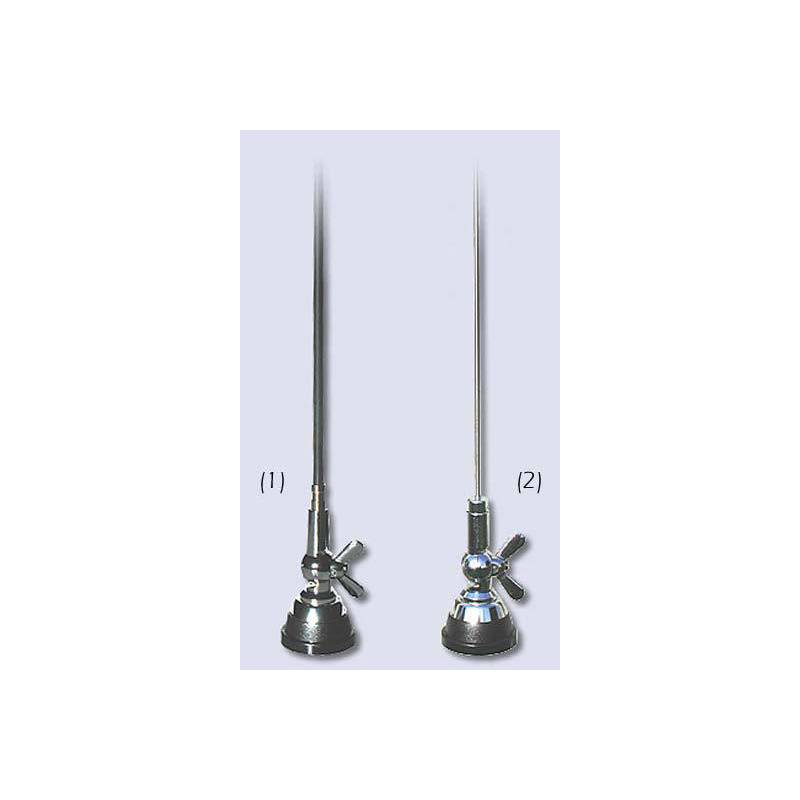

- MG 75: Black fiberglass conic whip
- MGA 75 C: 17/7 PH tapered stainless steel whip
- 180° inclination and adjustable whip, detachable for car-washes access
SPECIFICATIONS
Specifications:
| Electrical Data | |
| ? | Type: 1/4 ? |
| ? | Fequency Range: tunable from 66 to 88 MHz |
| ? | Impedance: 50? unbalanced |
| ? | Radiation (H-plane): 360° omnidirectional |
| ? | Polarization: vertical |
| ? | Gain: 0 dB ref. to a ? /4 whip |

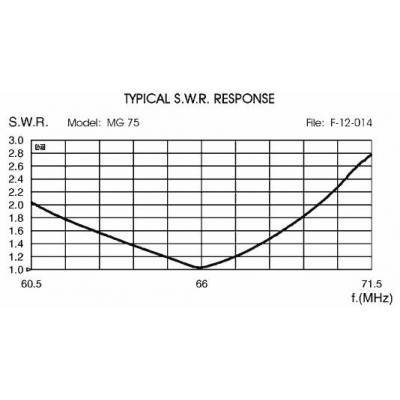

| ? | Bandwidth at V.S.W.R. 2:1: 9 MHz at 66 MHz |
| ? |
V.S.W.R. at res. freq.: MG 75: ? 1.2:1 MGA 75 C: ? 1.3:1 |
| ? | Max Power: 100 Watts |
| ? | Feed System / Position : Direct / Base |
| ? | Standard mount: "S" |
| ? | Cable Length / Type: 5 m / RG 58 |
| Mechanical Data | |
| ? |
Materials: MG 75: Glass Fibre, Chromed Brass, Nylon MGA 75 C: Stainless Steel 17/7 PH, Nylon, Chromed Brass |
| ? |
Height (approx.): MG 75: 1110 mm MGA 75 C: 1210 mm |
| ? |
Weight (approx.) : MG 75: 500 gr MGA 75 C: 420 gr |
| ? | Mounting Hole: Ø 19 mm |
- Reference: MG* 75*
