• DIAMOND SRH701 - SMA
DIAMOND SRH701 - SMA

Accessories

DIAMOND SRH701 - SMA

C645
€15.50
Tax excluded
€15.50
Tax excluded

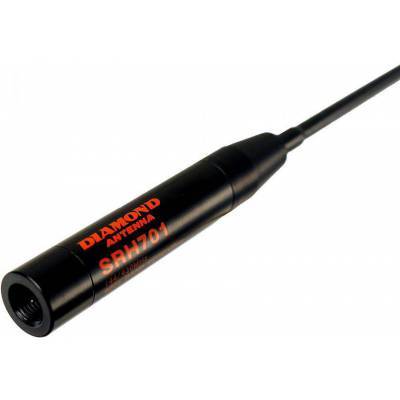

Antenna for HANDHELD transceiver, high presentations to obtain an exceptional quality in the communications.

Product available for orders

Antenna for HANDHELD transceiver, high presentations to obtain an exceptional quality in the communications.
Conector SMA male type, to connect to the walkie with SMA female type.

Perfect to use with walkies Bi-band, Kenwood TH-F7, Yaesu VX-7 , Yaesu FT-60, etc.
And valid to use with radio scanners: Alinco DJX 3, Yaesu VR-120, Icom IC-R5, etc.


SRH701: 144/430MHz(2m/70cm)

Length: 20cm / Weight: 26g
Impedance: 50ohms / Max.power rating: 10W FM
Connector: SMA-P
Type: 1/4wave:
           144/430MHz TX/RX
           120/150/300/450/900MHz for receiving only

SPECIFICATIONS

Specifications:

  • TX: 144/430MHz (2m/70cm)
  • RX: 120/150/300/450/900MHz
  • Gain: 0dBi
  • Impedance: 50ohms
  • Max. power rating: 10W
  • Length: 20cm
  • Weight: 26g
  • Connector: SMA-P
  • Type:1/4wave (144/430MHz)
