• DIAMOND RH701 - BNC
DIAMOND RH701 - BNC DIAMOND RH701 - BNC

Accessories

DIAMOND RH701 - BNC

C634
€13.95
Tax excluded
€13.95
Tax excluded
Antenna for HANDHELD transceiver, high presentations to obtain an exceptional quality in the communications.

available - 3 - 7 Days Delivery Time:  3 - 7 Days

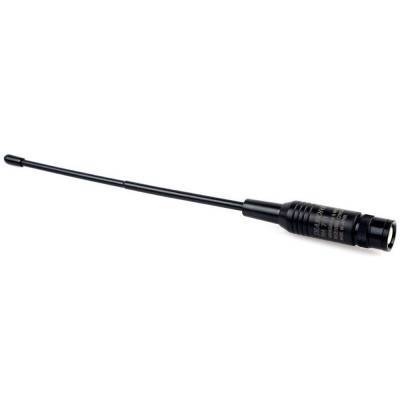

Antenna Diamond RH-701

Antenna for HANDHELD transceiver, high presentations to obtain an exceptional quality in the communications.

Conector BNC type.

  • Double band 144/430 MHz. (2m/70cm)
  • Length 22 cm.
  • Weight: 35g.
  • Max. power rating: 10W FM
  • Impedance: 50ohms.
  • Connector:BNC-P
  • Type:1/4wave 144/430MHz TX/RX
  • 120/150/300/450/800/900MHz for receiving only.
  • 180 degrees tilt angle adjustable.

SPECIFICATIONS

  • TX: 144/430MHz (2m/70cm)
  • RX: 120/150/300/450/800/900MHz
  • Max. power rating: 10W
  • Impedance: 50ohms
  • Length: 21cm
  • Weight: 30g
  • Connector: BNC-P
  • Type: 1/4wave (144/430MHz)
  • Reference: C634
