• ICOM IC-A16E BLUETOOTH
ICOM IC-A16E BLUETOOTH

Airband

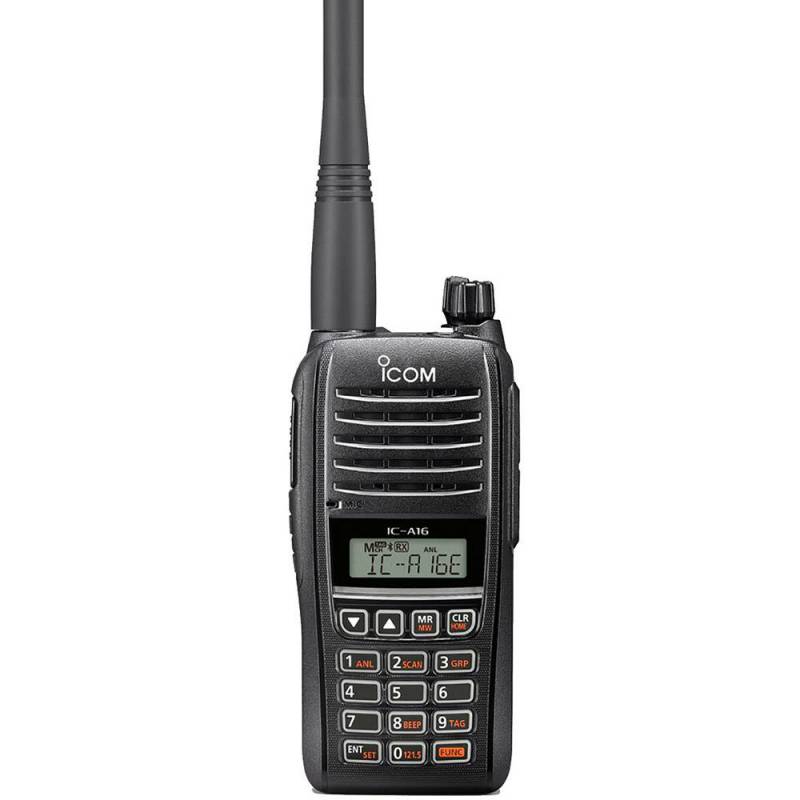

ICOM IC-A16E BLUETOOTH®

IC-A16E.12
€295.00
Tax excluded
€295.00
Tax excluded

Portable VHF AM airband radio. Frequency  Tx/Rx 118.000-136.975 MHz. Output power 6 W typ. (PEP) ,  1.5 W typ. (CW) . 200 memory channel. Built-in Bluetooth®


In stock
49 Items

Walkie ICOM IC-A16E Ground to Air Radio with Built-in Bluetooth®

  • IC-A16E#22: VHF, IP67, 6 W.
  • IC-A16E#12: VHF, IP67, 6 W, with Bluetooth.
  • 8.33 kHz and 25 kHz channel spacing
  • 1.500 mW loud audio provides clear communications
  • 6 W (PEP) /1.8 W (carrier) RF output power
  • Built-in Bluetooth® for Hands-Free Operation (Bluetooth operation depending on the transceiver version)
  • Large capacity battery pack provides 17 hours* of long battery life (with BP-280. Typical operation with
    TX : RX : Standby = 5:5:90. (Bluetooth OFF, backlight OFF)
  • Compact, waterproof durable body (IP67/54 and MIL-STD-810-G)
  • LCD and key backlight for night time operation
  • Compatible with third-party aviation headsets (optional headset adapter OPC-2401 required)



Other features

  • Auto Noise Limiter (ANL) for noise reduction
  • Side Tone function
  • Internal VOX capability
  • 200 memory channels with names up to 8 characters
  • BNC type antenna connector



Supplied accessories

  • BP-280 battery pack
  • BC-213 rapid charger
  • BC-123SA AC adapter
  • FA-B02AR antenna
  • MB-133 belt clip
  • Hand strap

SPECIFICATIONS

General

Frequency range TX: 118.000?136.99166 MHz
RX: 108.000?136.99166 MHz
RX (Weather): 161.650?163.275 MHz
Number of memory channels 200 channels
Channel spacing 8.33 kHz/25 kHz
Type of emission 6K00A3E, 5K60A3E, 16K0G3E (Weather)
Power supply requirement 7.2 V DC
Current drain (approximate)TX High 1.8 A
RxStand-by 65 mA typical
Max. audio 650 mA
Antenna impedance 50 ? (BNC type antenna connector)
Operating temperature range ?10?C to +60?C, 14?F to +140?F
Dimensions (W×H×D)
(Projections not included)
52.2 × 111.8 × 34.1 mm,
2.1 × 4.4 × 1.3 in (with BP-280)
Weight (approximate) 257 g, 9.1 oz (with BP-280)

Transmitter

Output power (at 7.2 V DC) 6.0 W (PEP), 1.8 W (carrier)
Audio harmonic distortion Less than 10% (at 60% modulation)
Spurious emissions More than 46 dB*
Frequency stability ±0.4 kHz

Receiver

Intermediate frequencies

46.35 MHz (1st), 450 kHz (2nd)

Sensitivity COM: Less than 0 dB? (at 6 dB S/N)
NAV: Less than 3 dB? (at 6 dB S/N)
Weather: Less than ?8 dB? (at 12 dB SINAD)
Squelch sensitivity (Threshold) Less than 0 dB?,
Weather: Less than ?5 dB?
Spurious response More than 60 dB,
Weather: More than 30 dB
Ham and noise More than 35 dB (at 30% modulation)
Audio output powerINT SP 1500 mW typical
EXT SP More than 350 mW
(AM 8 ? 60% modulation at 10% distortion)
External speaker connector 3 conductor 3.5 (d) mm

* Except operating frequency ±62.5 kHz in 25 kHz channel spacing. Except operating frequency ±20.825 kHz in 8.33 kHz channel spacing.

Measurements made in accordance with FCC Part 87.
