Dynascan AB-650 Air Band Radio
DESCRIPTION
The Dynascan AB-650 transceiver is a compact and affordable VHF air band (118-136.975 Mhz) handheld radio specially designed for use in the aviation field* primarily by ground personnel, as well as drone pilots and also by radio listeners.
With an extremely robust polycarbonate housing and a compact size, they make the Dynascan AB-650 Walkie Talkie suitable for outdoor use, even in adverse weather conditions.
Adjustable transmit power
With a transmit power of up to 5 watts, the Dynascan AB-650 gives us the flexibility to reduce the power down to 1 watt if necessary, to extend battery life. The illuminated display shows the battery charge status in the form of a bar graph, and also offers us the possibility of viewing the current battery voltage on the screen.
Easy operation with the VOX function
Thanks to the VOX function, the Dynascan AB-650 allows us to use the device without manually pressing the [PTT] button. When the microphone recognizes your voice, the walkie automatically switches to transmission mode.
Versatile use
In addition to the VFO mode, with which we can directly enter the transmission frequency, the Dynascan AB-650 offers us an impressive 400 memory channels that we can identify with names and alphanumeric characters for easy identification. This programming can be done quickly and easily directly on the device itself, without the need for programming software.

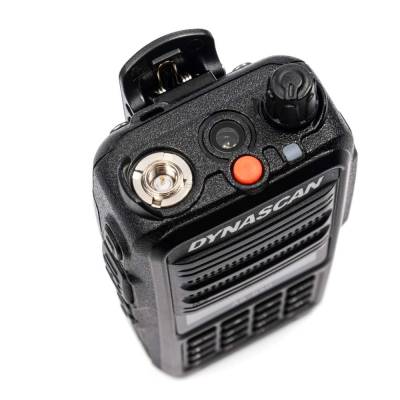

The connection of external headphones is made through a K-type connector (our Kenwood-compatible CB02 connector) which allows the connection of standard connection headphones for FM radios (2 meters or PMR446). For the first time, it is now possible to use an aeronautical radio with any headset without the need for a special adapter. However, a special adapter is required to connect a GA aviation headset with 6.3 and 5.2 mm jacks.
Additional functions
The Dynascan AB-650 has several additional functions, which can be easily accessed from its menu with clear and simple text (in English), such as the stopwatch or flashlight, among others.
FEATURES
- Backlit LCD display and keypad
- Up to 400 memory channels
- VOX function
- High capacity battery: 2,600 mAh
- Dust and water resistant construction
- Compact size
- Compatible with aviation headsets**
- 3 year warranty
FUNCTIONS
- Power save function
- Battery voltage readout
- Timed display illumination
- Timer to transmit (TOT)
- Busy channel lockout (BCL)
- End of transmission announcement (TOA)
- Voice activated transmission (VOX)
- Channel name
- Scan type selection
- Automatic keypad lockout
- Programmable side and top keys
- Stopwatch function
- Commercial FM radio

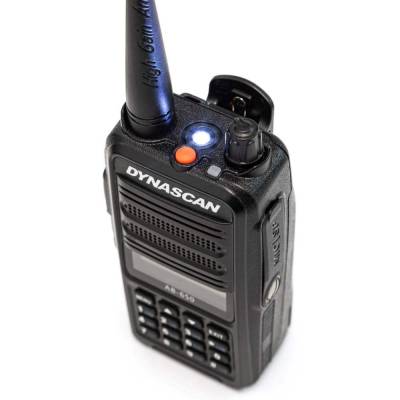

- Flashlight
SPECIFICATIONS
- Frequency range: 118.000-136.975 MHz
- Adjustable transmit power: 1-5W (6W PEP)
- Memory channels: 400
- Step 25 kHz/ 8.33 kHz
- Modulation type: AM (A3E)
- Battery: 7.4V/2,600 mAh
- Operating temperature: -20 º + 55ºC
- Antenna impedance: 50 Ohm
- Dimensions: 124.5 x 61.5 x 33.9 mm
- Weight: 280 g
TRANSMITTER
Frequency stability: ±2.5 ppm
Transmission power: 1-5W
Adjacent channel power: ≤ 60 dB
Spurious emissions: < 60 dB below the carrier
Consumption: ≤ 1.8 A
RECEIVER
Receiver type: Double conversion superheterodyne
Sensitivity: : 0.25 µV (12 V) dB/SINAD)
Intermediate frequencies: 46.35 MHz (1st IF) / 450 kHz (2nd IF)
Spurious emissions: < 60 dB
Audio distortion: ≤ 10 %
Audio output: ± 350 mW @ 8 Ω
Consumption: ≤ 1.8A

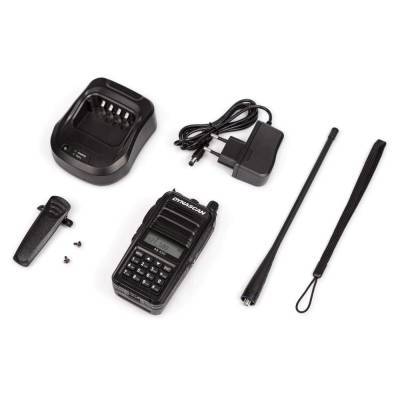

CONTENTS
AB-650 Transceiver
VHF Antenna
Li-Ion 7.4V 2,600 mAh Battery
Charging base
AC 220/230V power supply
Belt clip
Hand strap
User manual in Spanish, English, French, Portuguese and German.
* The Dynascan AB-650 is CE marked and complies with ETSI EN 300 676-2 for portable AM (Amplitude Modulation) transceivers used for aeronautical services.
**Adapter required (available separately)
